MP seriyali mexanik polishing mashinasi
LSTD MP seriyali mexanik polishing mashinasi o'ta qattiq materiallarni tez parlatish talablariga javob berish uchun ishlab chiqilgan. Uskunada yumshoq metall plastinka yoki kompozit plastinka va o'ziga xos zarracha o'lchamiga ega olmosli atala ishlatiladi, bu qayta ishlangan ish qismini oyna yuzasiga tezda etib borishi mumkin. Mexanik parlatishning yana bir muhim afzalligi shundaki, plastinka shaklini yaxshi nazorat qilish sharti bilan u deyarli hech qanday chekka qulashisiz juda tekis ishlov beriladigan sirtni olishi mumkin. Epitaksial qo'llanilishi bilan ishlov beriladigan qism (gofret) uchun, mexanik abrazivdan so'ng, kimyoviy mexanik abraziv ishlov berish vaqtini sezilarli darajada qisqartirish va xarajatlarni kamaytirish mumkin. MP seriyali kimyoviy mexanik polishing mashinasi sapfir, kremniy karbid va olmos kabi har xil o'ta qattiq yarimo'tkazgichli gofretlarni mexanik polishing, shuningdek, keramika, sementlangan karbid va söndürülmüş po'lat kabi boshqa o'ta qattiq materiallarni parlatish uchun ishlatilishi mumkin.
CP seriyali kimyoviy mexanik polishing mashinalari kabi:
MP seriyali mexanik polishing mashinalari ham uchta bir xil modelga bo'linadi: asosiy turdagi, bosimli disk markazidan boshqariladigan turdagi (CD turi) va bosim plastinkasidan mustaqil boshqariladigan turdagi (IDP turi) (4-betga qarang; MP seriyali mexanik abraziv mashinalari CP ga o'xshash tuzilishga ega. seriyali kimyoviy mexanik polishing mashinalari, lekin mexanik polishing ehtiyojlarini qondirish uchun, MP seriyali mexanik polishing mashinalari plitalarni yivlash uchun polishing plastinka burilish tizimi bilan jihozlangan.
IDP tipidagi mexanik polishing mashinasi:
IDP tipidagi mexanik polishing mashinasi bosim plitasining tebranish funktsiyasini birlashtirish orqali mexanik abraziv aniqligini yanada yaxshilashi mumkin; Mexanik polishing natijasida hosil bo'lgan isitish natijasida yuzaga keladigan polishing plitasining kengayish deformatsiyasi va qattiqligini kamaytirish muammolarini hal qilish uchun LSTD yangi texnologiyani ishlab chiqdi va plastinka sirt harorati, plastinka shakli va plastinka qattiqligini samarali nazorat qila oladigan patent uchun qo'llaniladi; Kremniy karbid, olmos va boshqa gofretlar kabi uchinchi avlod yarimo'tkazgichli materiallarni mexanik polishing uchun ushbu texnologiya mexanik polishing samaradorligi va aniqligi muammolarini samarali hal qilishi mumkin.
BASIC TYPE MP seriyali mexanik polishing mashinasi
Turi va spetsifikatsiyasi | MP-380B(V*) | MP-460B(V) | MP-610B(V) | MP-810B(V) | MP-910B(V) | MP-1280B(V) | MP-1500B(V) |
Polishing plitasining diametri | 381 mm | 460 mm | 598 mm | 796 mm | 898 mm | 1262 mm | 1480 mm |
Bosim plitasining diametri | 139 mm | 150 mm | 240 mm | 304,8 mm | 360mm/355mm | 485 mm | 576 mm |
Bosim plitasining raqami | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Polishing plitasi RPM | 10 ~ 160 rpm | 10 ~ 160 rpm | 10 ~ 115 rpm | 10 ~ 87 rpm | 10-80rpm | 10 ~ 64 rpm | 10-54rpm |
Polishing bosimi (maksimal) | 100 kg | 100 kg | 140 kg | 250 kg | 320 kg | 560 kg | 760 kg |
Dvigatel quvvati | 0,75 kVt | 1,5 kVt | 3 kVt | 5,5 kVt | 11kVt | 22 kVt | 35 kVt |
Quvvatlantirish manbai | 3PH, 380V, 50Hz | ||||||
Hajmi | 1250L 770W 1560H | 1360L 850W 1650H | 1550L 900W 1700H | 1980L 920W 1900H | 2100L 1262W 2120H | 2550L 1670W 2200H | 3500L 2020W 2500H |
Og'irligi (taxminan..) | 420 kg | 720 kg | 1080 kg | 2200 kg | 2400 kg | 7300 kg | 9500 kg |
Gofretni yuklash qobiliyati | 2"{1}}dona/bosh 2"{1}}dona/bosh(V) | 2"{1}}dona/bosh 2"{1}}dona/bosh(V) | 2"{1}}dona/bosh 4"-3dona/bosh | 2"{1}}dona/bosh 4"-5dona/bosh 5 "-3dona/bosh | 4"-7dona/bosh 5 "-5dona/bosh 6"{1}}dona/bosh | 5 "-8dona/bosh 6"{1}}dona/bosh 8"-3dona/bosh | 6"{1}}dona/bosh 8"-5dona/bosh |
CD TYPE MP seriyali mexanik polishing mashinasi
Turi va spetsifikatsiyasi | MP-380B-CD | MP-460B-CD | MP-610B-CD | MP-810B-CD |
Polishing plitasining diametri | 381 mm | 460 mm | 598 mm | 796 mm |
Bosim plitasining diametri | 139 mm | 150 mm | 240 mm | 304,8 mm |
Bosim plitasining raqami | 3 | 4 | 4 | 4 |
Polishing plitasi RPM | 10 ~ 160 rpm | 10 ~ 160 rpm | 10 ~ 115 rpm | 10 ~ 87 rpm |
Polishing bosimi (maksimal) | 100 kg | 100 kg | 140 kg | 250 kg |
Markazdan boshqariladigan Dvigatel quvvati | 400W | 750 kVt | 1KVt | 1,5 kVt |
Asosiy Dvigatel quvvati | 0,75 kVt | 1,5 kVt | 3 kVt | 5,5 kVt |
Quvvatlantirish manbai | 3PH, 380V, 50Hz | |||
Hajmi | 1250L 770W 1560H | 1360L 850W 1650H | 1550L 900W 1700H | 1980L 920W 1900H |
Og'irligi (taxminan..) | 420 kg | 720 kg | 1080 kg | 2200 kg |
Gofretni yuklash qobiliyati | 2"{1}}dona/bosh | 2"{1}}dona/bosh | 2"{1}}dona/bosh 4"-3dona/bosh | 2"{1}}dona/bosh 4"-5dona/bosh 5 "-3dona/bosh |
Turi va spetsifikatsiyasi | MP-910B-CD | MP-1280B-CD | MP-1500B-CD |
Polishing plitasining diametri | 898 mm | 1262 mm | 1480 mm |
Bosim plitasining diametri | 360mm / 355mm | 485 mm | 576 mm |
Bosim plitasining raqami | 4 | 4 | 4 |
Polishing plitasi RPM | 10-80rpm | 10 ~ 64 rpm | 10-54rpm |
Polishing bosimi (maksimal) | 320 kg | 560 kg | 760 kg |
Markazdan boshqariladigan Dvigatel quvvati | 2KVt | 3,5 kVt | 5,5 kVt |
Asosiy Dvigatel quvvati | 11kVt | 22 kVt | 35 kVt |
Quvvatlantirish manbai | 3PH, 380V, 50Hz | ||
Hajmi | 2100L 1262W 2120H | 2550L 1670W 2200H | 3500L 2020W 2500H |
Og'irligi (taxminan..) | 2400 kg | 7300 kg | 9500 kg |
Gofretni yuklash qobiliyati | 4"-7dona/bosh 5 "-5dona/bosh 6"{1}}dona/bosh | 5 "-8dona/bosh 6"{1}}dona/bosh 8"-3dona/bosh | 6"{1}}dona/bosh 8 "5 dona / bosh |

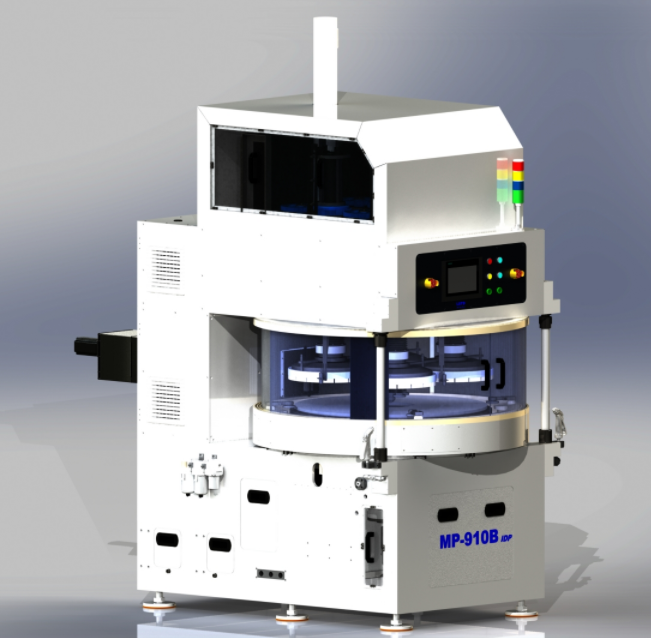

IDP TYPE MP seriyali mexanik polishing mashinasi
Turi va spetsifikatsiyasi | MP-380B-IDP | MP-460B-IDP | MP-610B-IDP | MP-810B-IDP |
Polishing plitasining diametri | 381 mm | 460 mm | 598 mm | 796 mm |
Bosim plitasining diametri | 139 mm | 150 mm | 240 mm | 304,8 mm |
Bosim plitasining raqami | 3 | 3 | 4 | 4 |
Polishing plitasi RPM | 10 ~ 160 rpm | 10 ~ 160 rpm | 10 ~ 115 rpm | 10 ~ 87 rpm |
Polishing bosimi (maksimal) | 100 kg | 100 kg | 140 kg | 250 kg |
Bosim plitasi boshqariladigan Dvigatel quvvati | 200W | 200W | 400 kVt | 400 kVt |
Bosim plitasining aylanish tezligi | 0~200 aylanish/daq | 0~200 aylanish/daq | 0~100rpm | 0~100rpm |
Asosiy Dvigatel quvvati | 0,75 kVt | 1,5 kVt | 3 kVt | 5,5 kVt |
Quvvatlantirish manbai | 3PH, 380V, 50Hz | |||
Hajmi | 950L 770W 1560H | 1100L 850W 1650H | 1350L 900W 1700H | 1600L 920W 1900H |
Og'irligi (taxminan..) | 350 kg | 350 kg | 980 kg | 1800 kg |
Gofretni yuklash qobiliyati | 2"{1}}dona/bosh | 2"{1}}dona/bosh | 2"{1}}dona/bosh 4"-3dona/bosh | 2"{1}}dona/bosh 4"-5dona/bosh 5 "-3dona/bosh |
Turi va spetsifikatsiyasi | MP-910B-IDP | MP-1280B-IDP | MP-1500B-IDP |
Polishing plitasining diametri | 898 mm | 1262 mm | 1480 mm |
Bosim plitasining diametri | 360mm / 355mm | 485 mm | 576 mm |
Bosim plitasining raqami | 4 | 4 | 4 |
Polishing plitasi RPM | 10-80rpm | 10 ~ 64 rpm | 10-54rpm |
Polishing bosimi (maksimal) | 320 kg | 560 kg | 760 kg |
Bosim plitasi boshqariladigan Dvigatel quvvati | 2KVt | 1KVt | 1,3 kVt |
Bosim plitasining aylanish tezligi | 2KVt | 0~100rpm | 0~100rpm |
Asosiy Dvigatel quvvati | 11kVt | 22 kVt | 35 kVt |
Quvvatlantirish manbai | 3PH, 380V, 50Hz | ||
Hajmi | 1800L 1262W 2120H | 2180L 1670W 2200H | 2800L 2020W 2500H |
Og'irligi (taxminan..) | 2200 kg | 7000 kg | 8600kg |
Gofretni yuklash qobiliyati | 4"-7dona/bosh 5 "-5dona/bosh 6"{1}}dona/bosh | 5 "-8dona/bosh 6"{1}}dona/bosh 8"-3dona/bosh | 6"{1}}dona/bosh 8 "5 dona / bosh |
